Gabion Mesh Features
Explore gabion mesh specifications and benefits.
Mesh Size Choice
3.0mm, 4.5mm, or 5.2mm checklist
Rock Fill Quality
Angular rock is the best gabion fill as it provides a good interlock and therefore less deformation of the face occurs

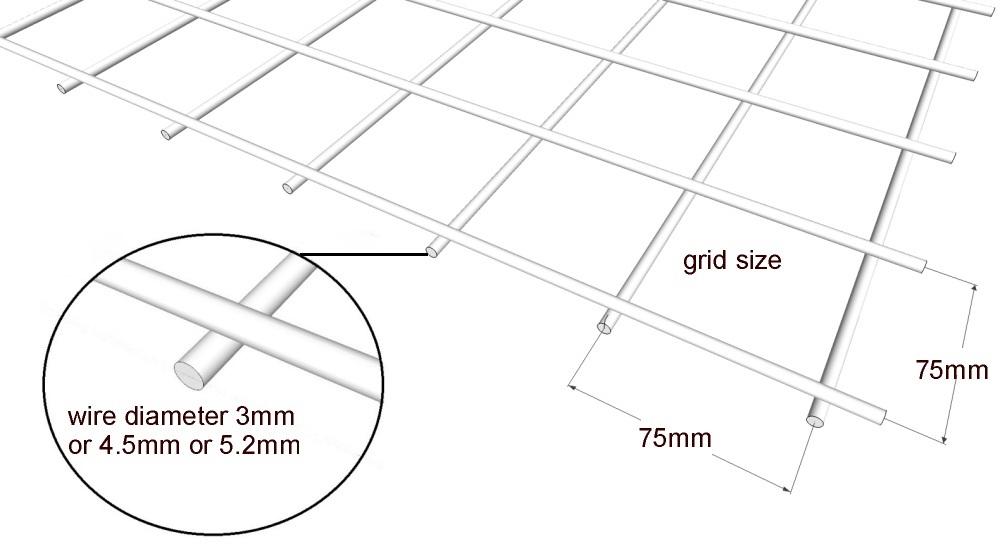

Mesh Construction
Electronically welded wire mesh 75mm x 75mm grid
Mesh Strength
5.2mm is 44% stronger than 4.5mm mesh
Wire Coating
3mm or 4.5mm diameter Galfan coated wire deflection video
Mesh Thickness
Will be walked or sat on
Rock Type
Suitable for round river rocks
Aesthetic Choice
Straight architectural look required

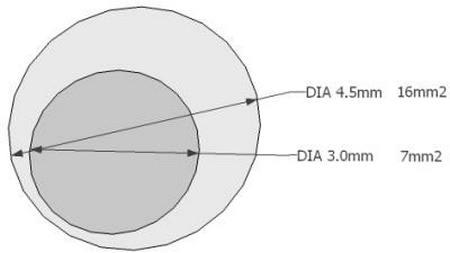

4.5mm dia wire is 125% stronger
4.5mm dia wire is 26.5% stronger than 4.0mm dia wire
Welded Gabions are the better choice
In locations where high flood water velocities are expected, carrying woody debris and gravels in suspension, the stronger 4.5mm or 5.2mm welded gabions are the preferred choice, to resist damage to the gabion structures during floods.
Stronger Welded Gabions
In locations where high flood water velocities are expected, carrying woody debris and gravels in suspension, the stronger 4.5mm or 5.2mm welded gabions are the preferred choice, to resist damage to the gabion structures during floods.
