KITSET GABION BASKET ASSEMBLY
View recent customer walls on Google+ or Pinterest

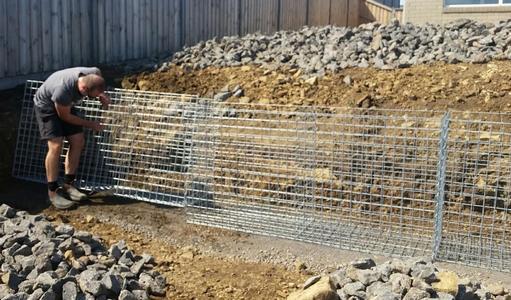

Gabion construction steps

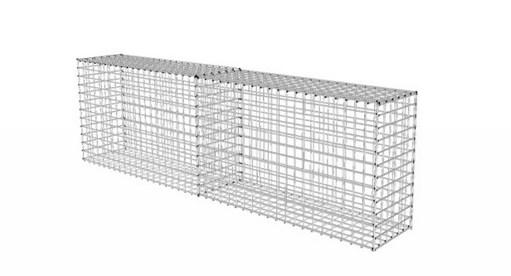

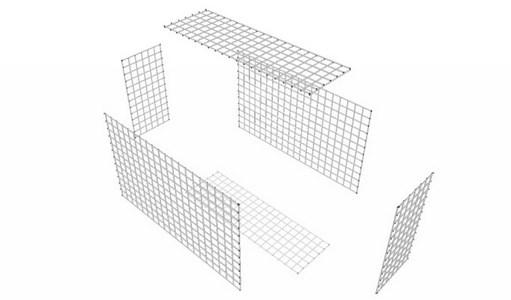

6 panels build the first gabion box.
End panel options
Are panels shared between gabions?

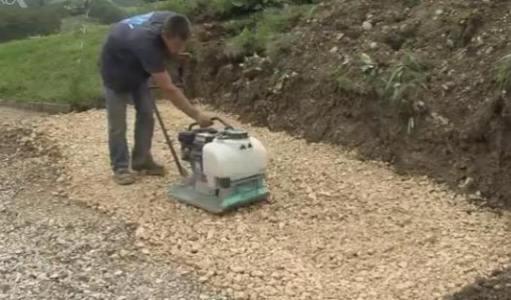

Foundation advice
Important information to read

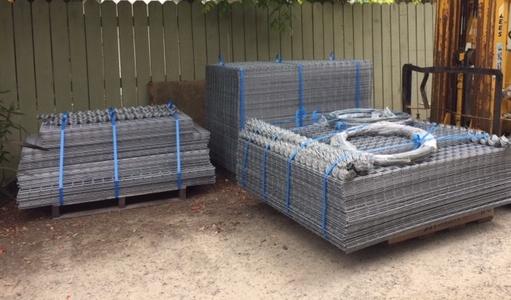

Orders ready for dispatch
Smaller orders sent by courier, all orders are flat packed.
Non structural walls, can use lower grade rock as infil
Helical Installation
Bracewire, max spacing 350mm
Video on YouTube
A YouTube video showing the process of gabion wall construction and some of its uses.
Gabions for rocks
Our gabions are designed to be easily filled with rock and are delivered ready for use.

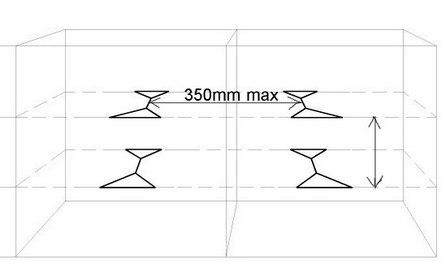

Bracewire Spacing
Max spacing of bracewires is 350mm in both directions

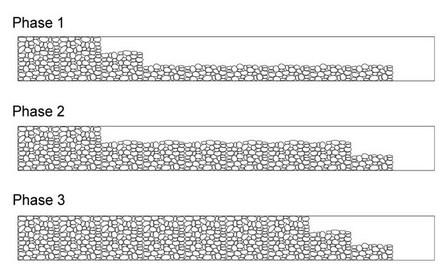

Gabion Filling
How to fill the gabions

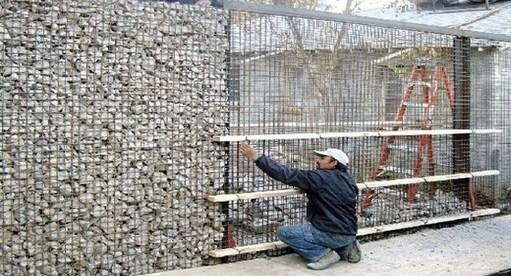

Temporary Bracing
Using temporary bracing during rock installation to ensure stability of the gabion structure.

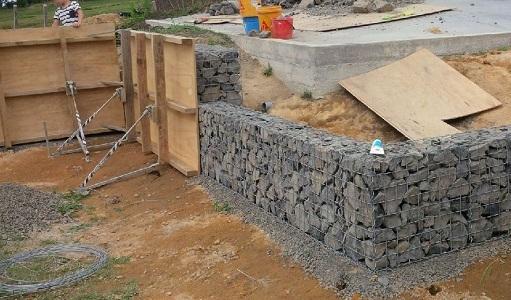

Plywood Formwork
Plywood formwork is a common and effective method to ensure straight walls are achieved.

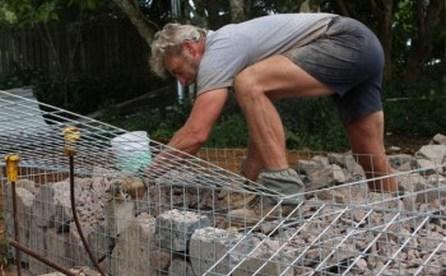

Placing “best rocks”
To achieve the desired appearance and structural integrity, proper rock placement is essential.

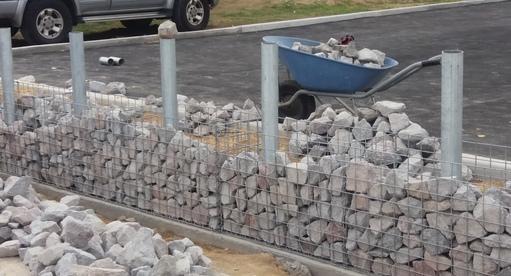

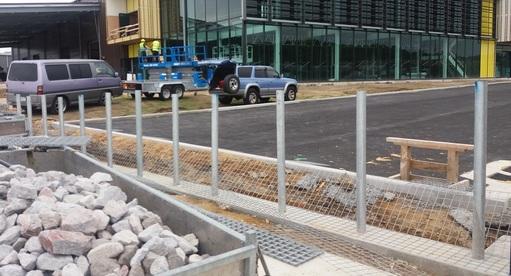

Support post necessity
Tall, slender walls need support posts to prevent bending or falling. Stability is ensured.
Structural Integrity
Of gabions relies on the gabions being tightly packed with hard, heavy, durable fill. Loosely packed of light weight fill compromises the gabions ability to resist loads placed on them.
