KITSET GABION BASKETS FOR CURVED WALLS
View recent customer walls on Google+ or Pinterest
GABION1’S NZ PRICELIST
Gabion walls are cheaper, much stronger and quicker to install than any other rock wall.
Gabion1 supply standard gabions

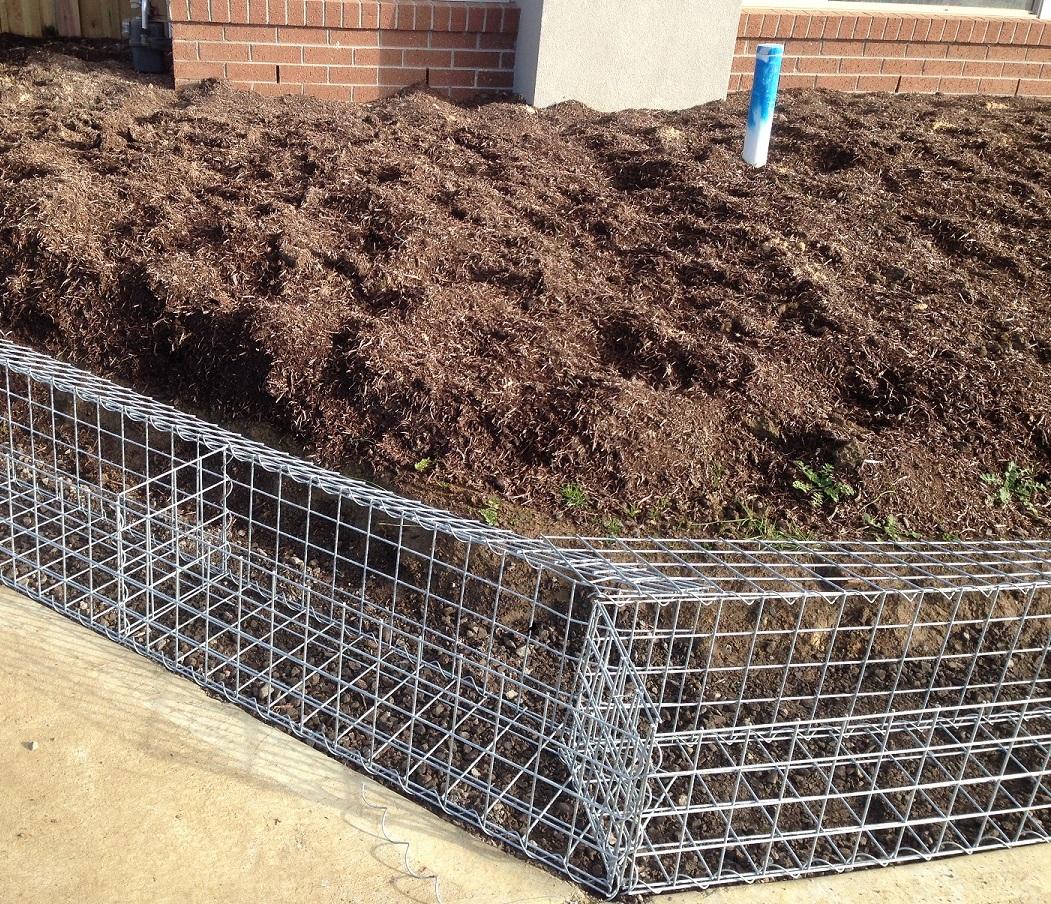

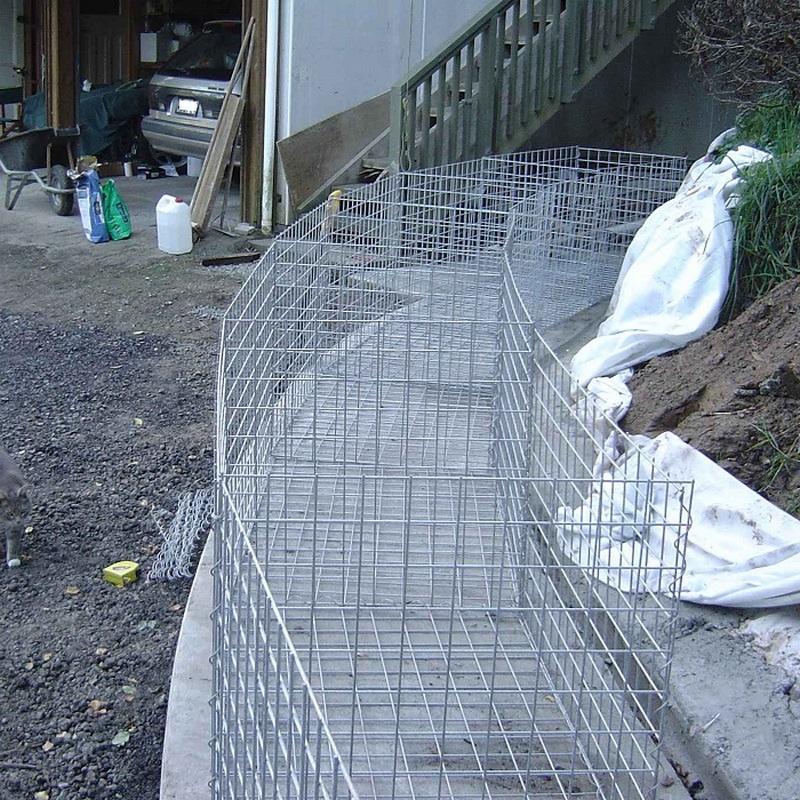

Completed gabion mitre corner detail

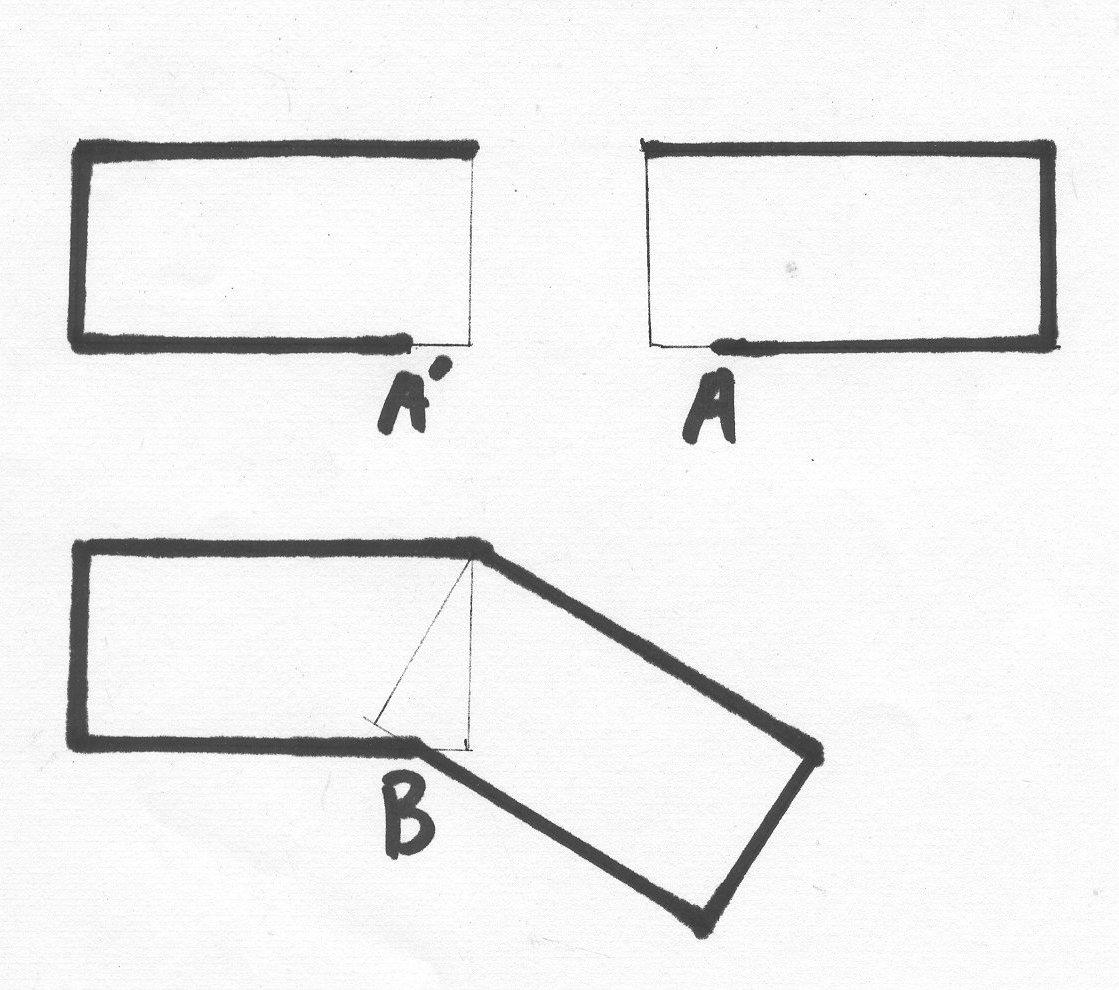

Creating mitre corner detail

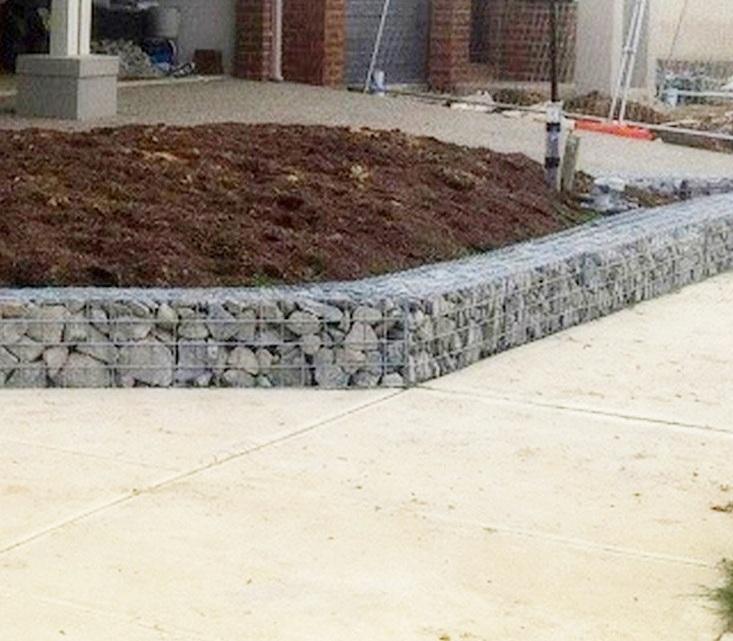

To create a curved wall effect, repeat the mitre on each gabion basket.
Cutting the gabions
You will need to site cut these gabions with bolt cutters.
Ordering gabions
Order gabions longer than needed for site measurements.

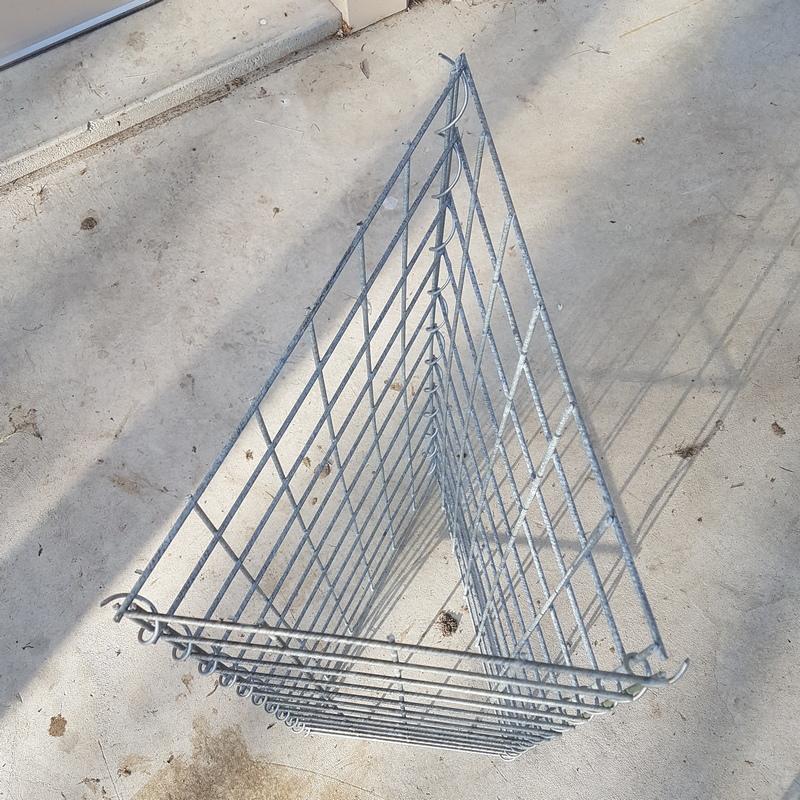

Wedge Detail
Gabion1 can supply the additional panels to create the triangle wedge detail
The radius measurement and gabion basket size will determine the required panel size
Helical Join
A single helical can join 3 sheets of gabion mesh
No need to order extra helicals.
Curved Gabion Solutions
Find gabion solutions for your next project.

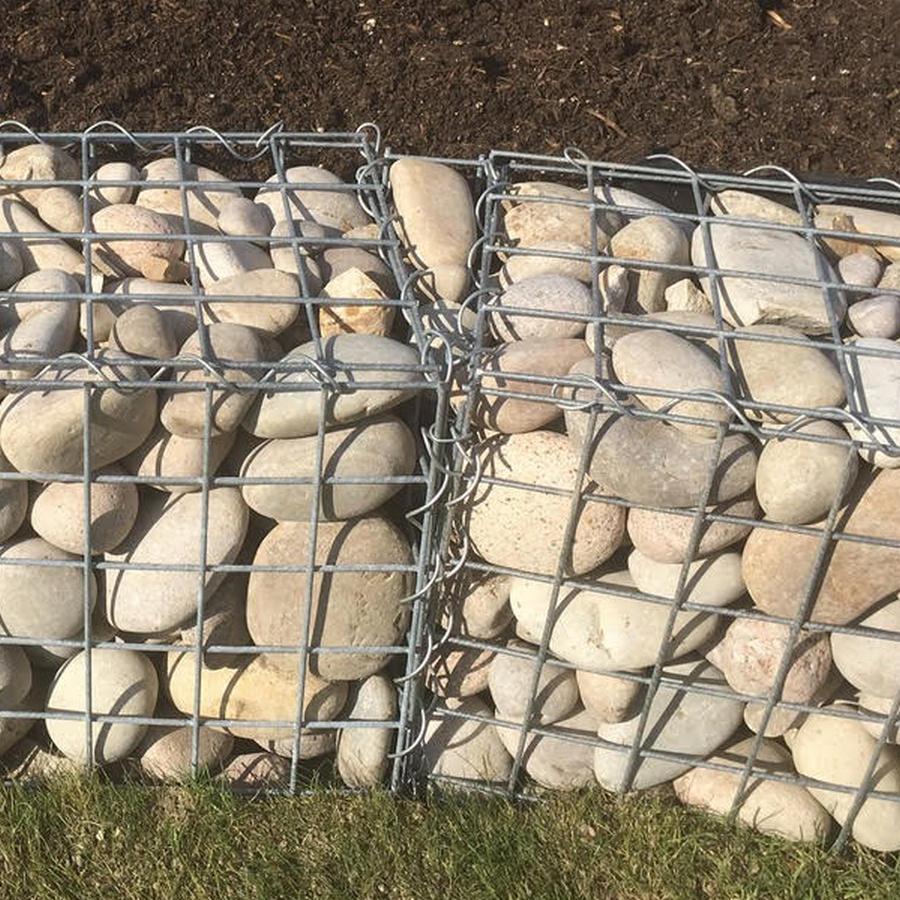

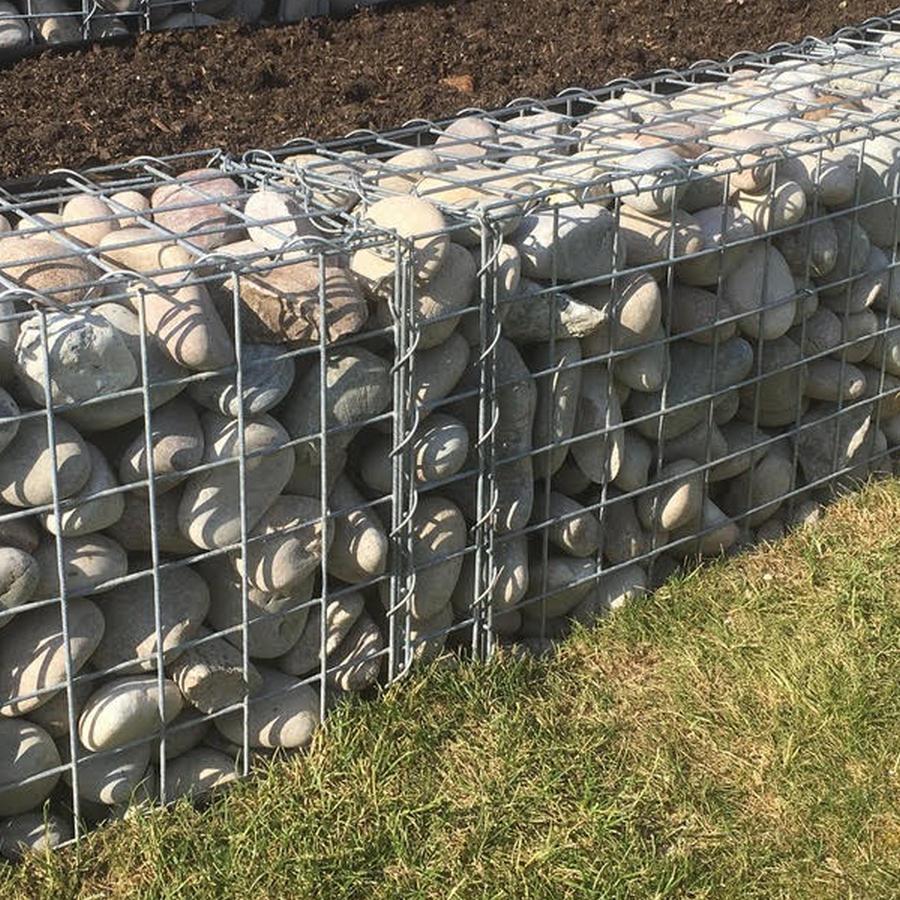

Wedge Detail Example
Example of 75mm wide wedge detail, without lid
Wedge Detail Example
Example of 75mm wide wedge detail, without lid
Curved Wall Gabions

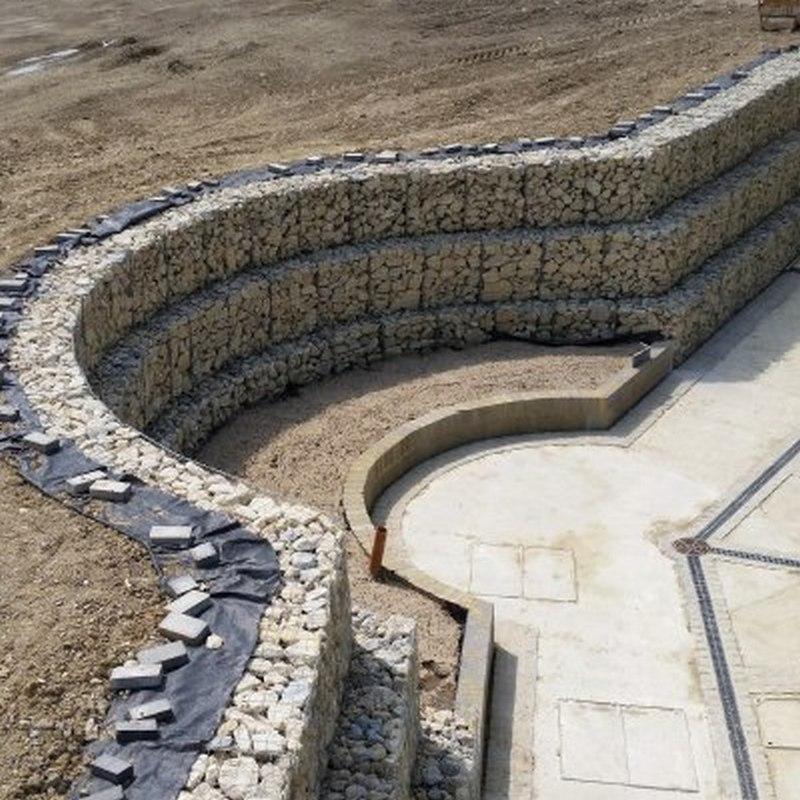

Multi-layered curved gabion wall

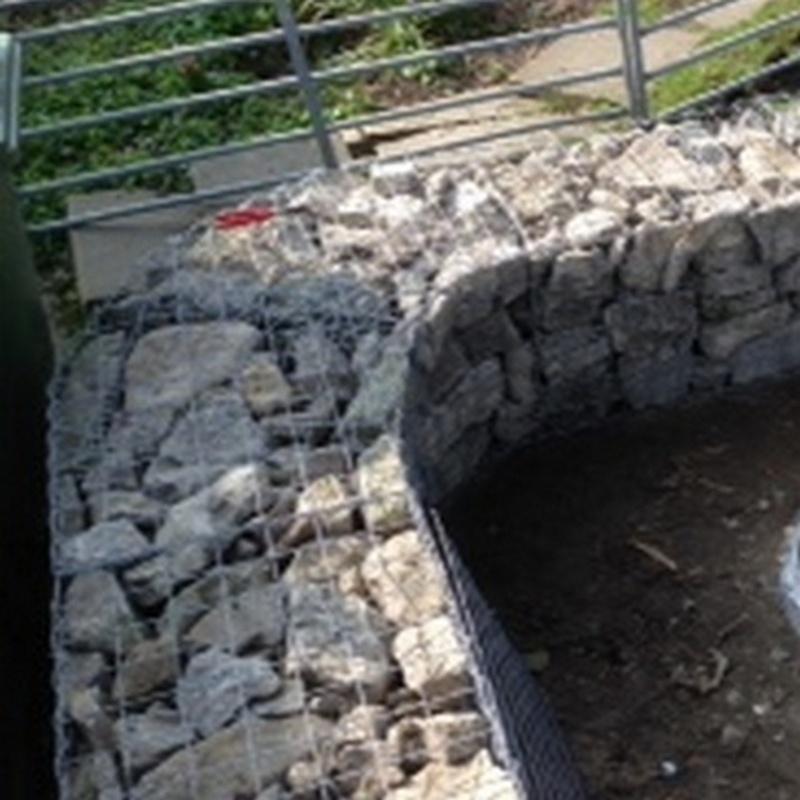

Gabion Corner Details

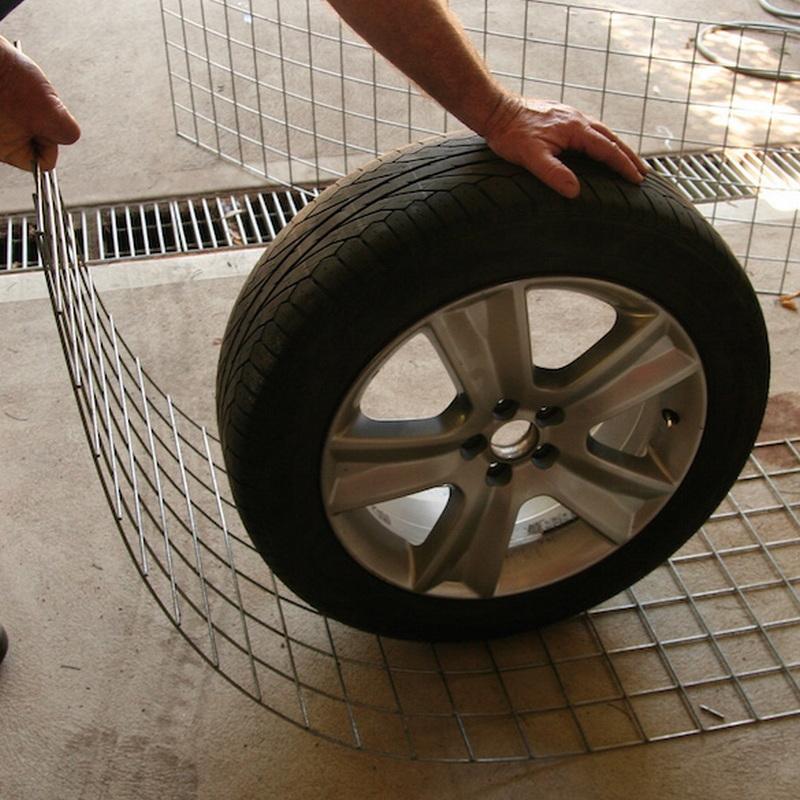

Bending flat mesh on site.
Double Curve Example
Hand lace lid to panels.
Ensure curves are parallel
Curved sides take more time.
Curved Gabion Solutions
Explore our innovative curved gabion designs and expert installations.
Curved Wall Finish
Achieve a unique aesthetic with our expertly crafted double curve finished walls, designed for structural integrity.

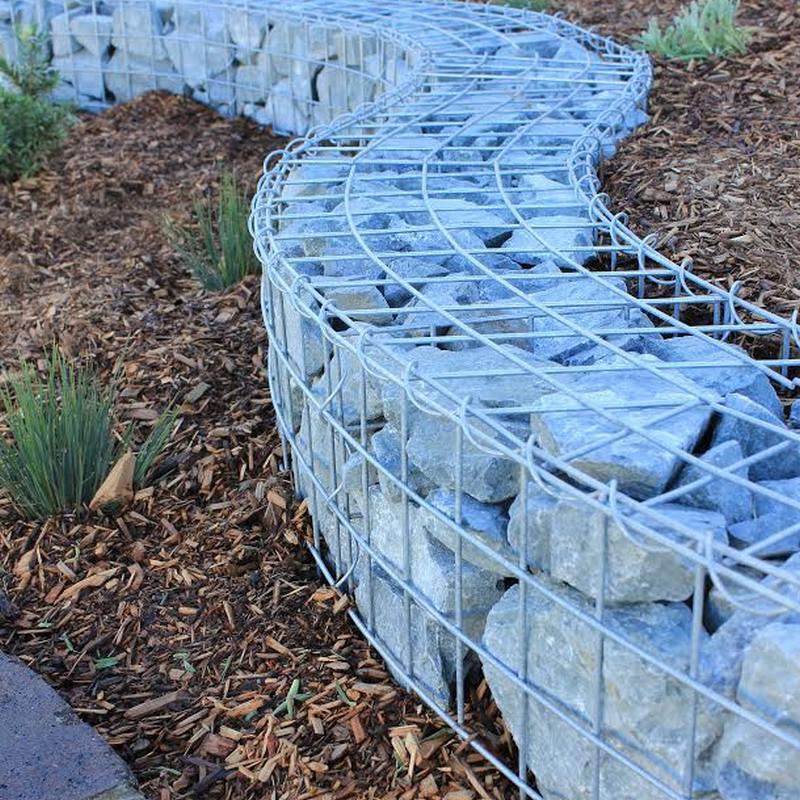

Site Curved Gabion Lid
Our team specializes in site curved gabion lids, ensuring precise and seamless integration with your gabion structures.

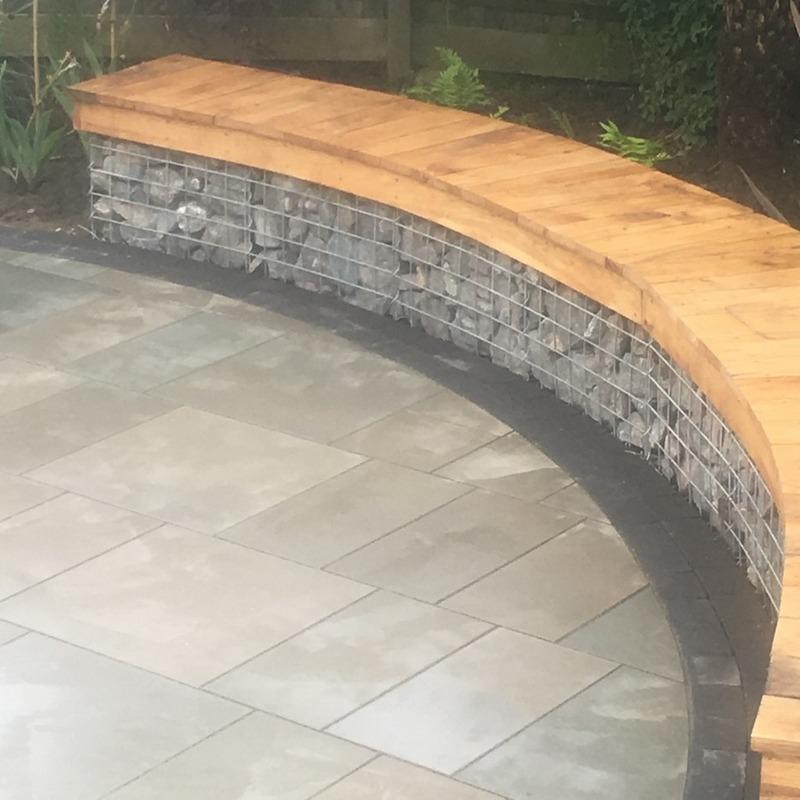

Gabion Seating Walls
Combine functionality and style with our curved gabion wall seating solutions, perfect for public and private spaces alike.
Gabion Baskets for Walls
A few curved wall examples.

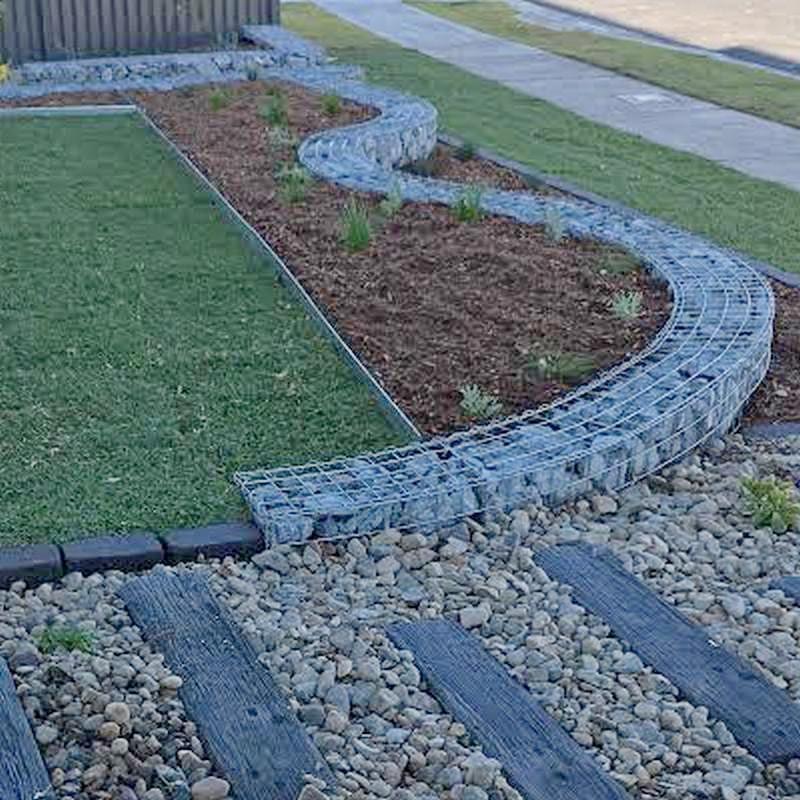

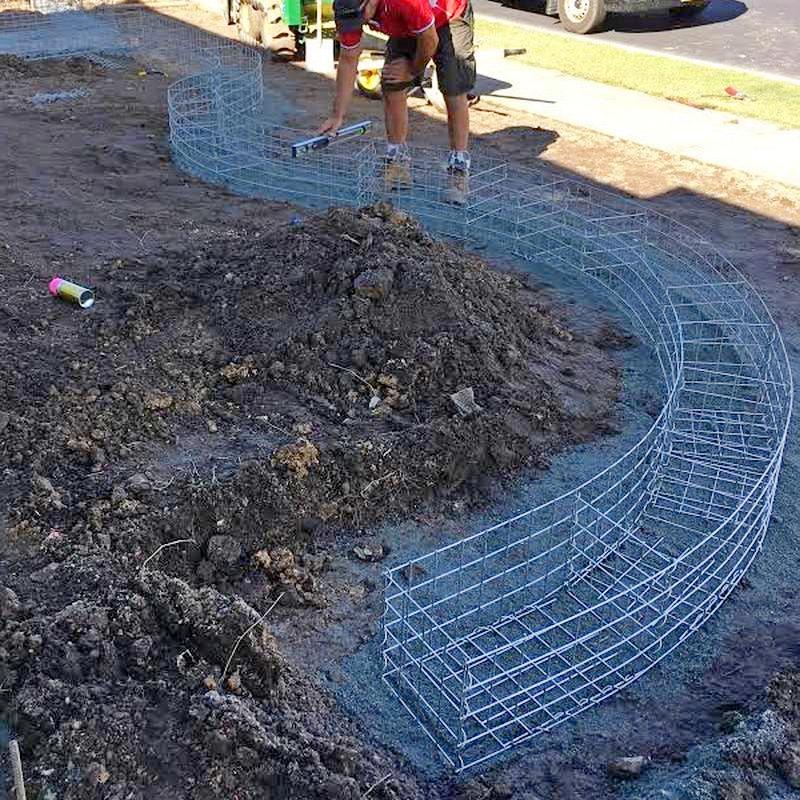

Gabion Wall Curve
Ready for filling with stone.

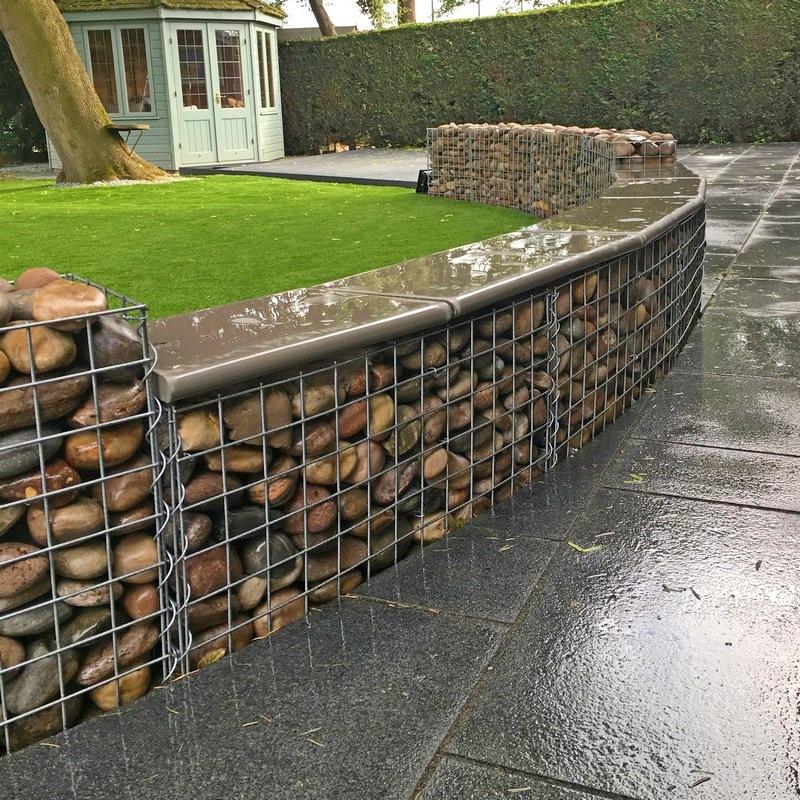

Stone Capping Detail
An alternative to timber.
Radius Maths
Click for rock size info
