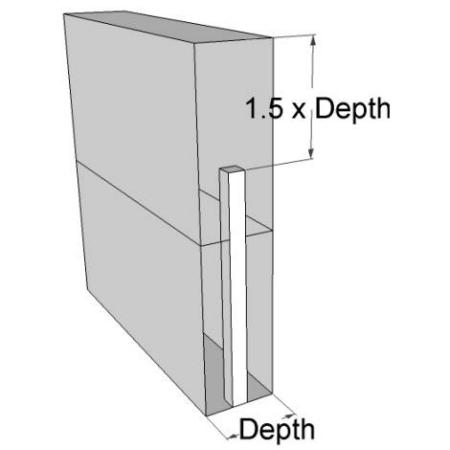

Gabion support post rules
Gabion support posts must extend to at least 1.5 x Depth from the top of the gabion basket

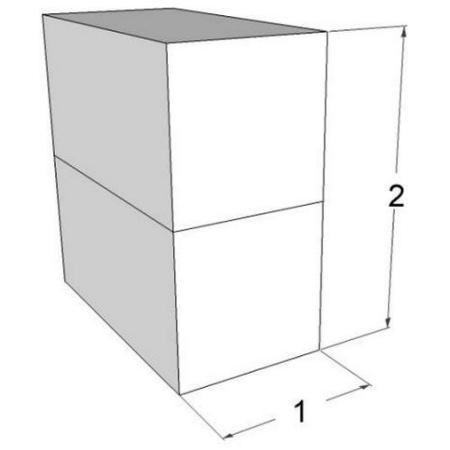

Wall Rules
Free standing or retaining walls should not exceed the 2:1 ratio
More info
Gabion retaining walls with flat ground behind or slopes of less than 5deg. should not exceed the 2:1 ratio
click here for profile info

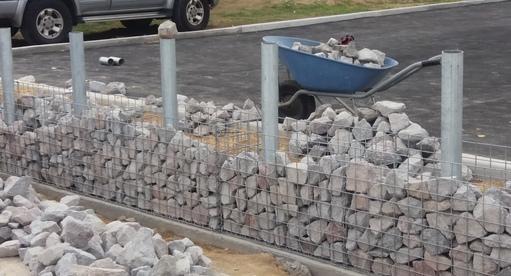

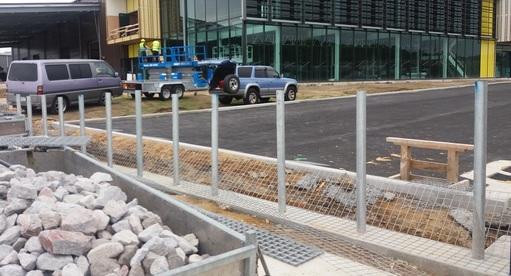

Post Spacing
Gabion support posts spacing should be no greater than 1.0m apart.
Hollow Steel Posts
Hollow steel posts need to be capped to prevent water entry
Engineer’s Design
An engineer’s design will take precedence, over these guidelines.

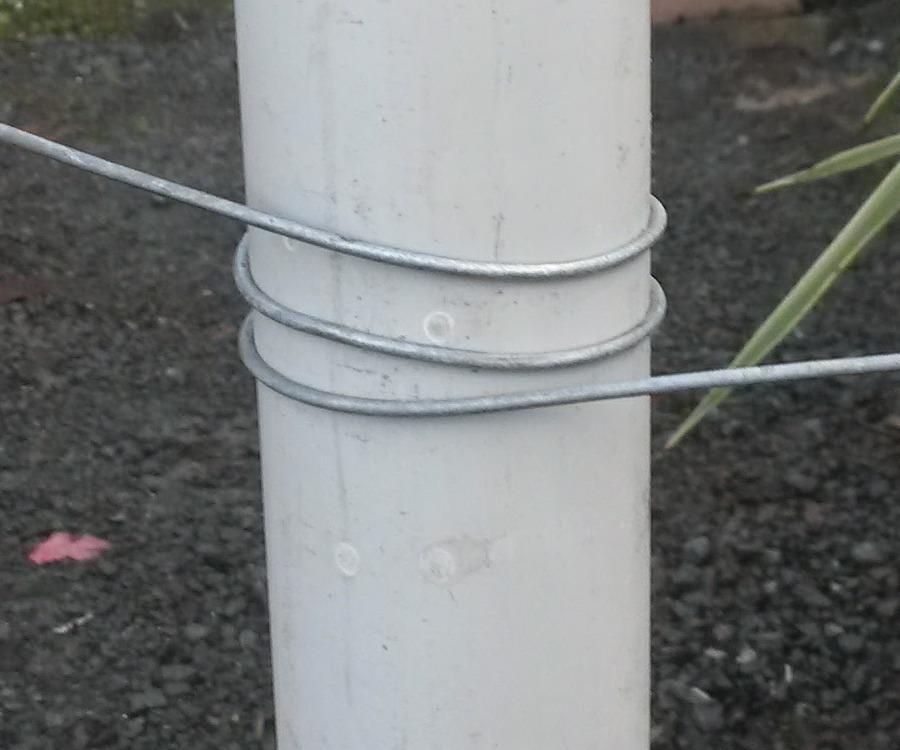

Brace Wire Example
Example of bracewire wrapped around support post

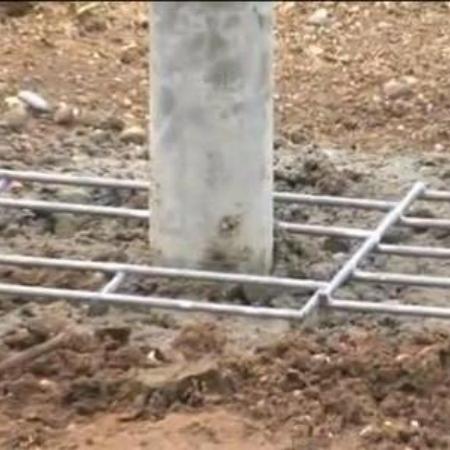

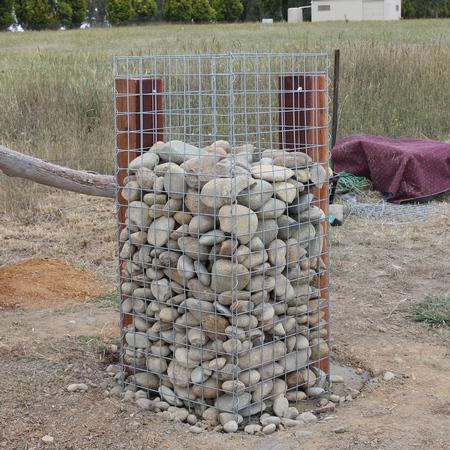

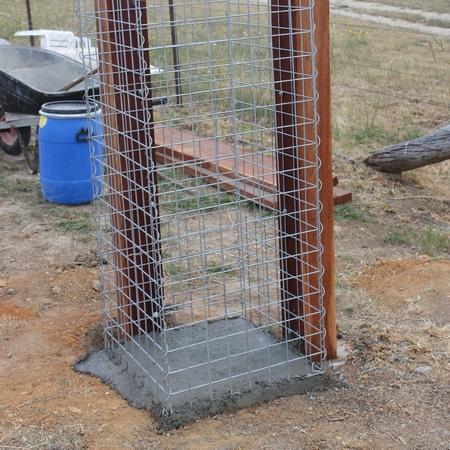

Post Example
Example of support post in non-retaining wall
Post Warning
Support posts are not recommended for retaining walls
