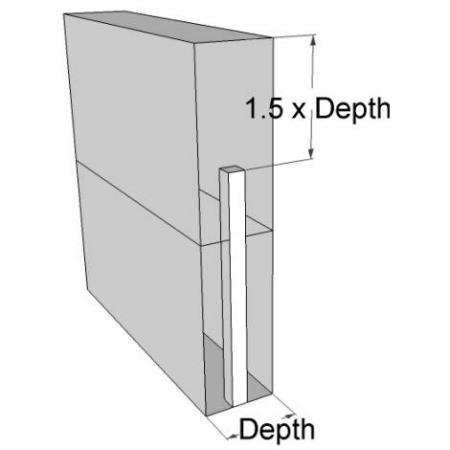

Gabion support posts
Gabion support posts must extend to at least 1.5 x Depth from the top of the gabion basket

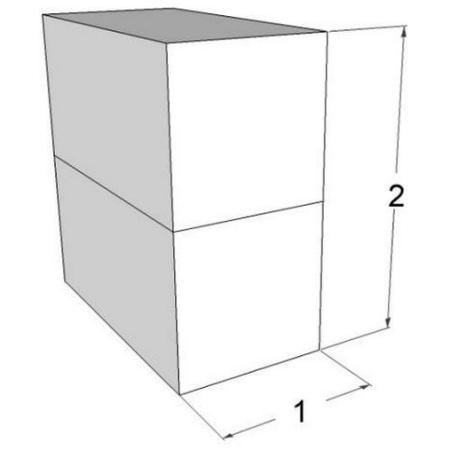

Retaining Walls Ratio
Gabion retaining walls with flat ground behind or slopes of less than 5deg. should not exceed the 2:1 ratio

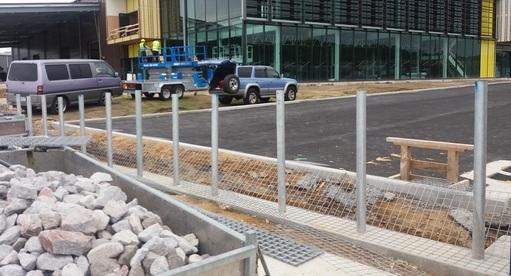

Post Spacing
Gabion support posts spacing should be no greater than 1.0m apart.

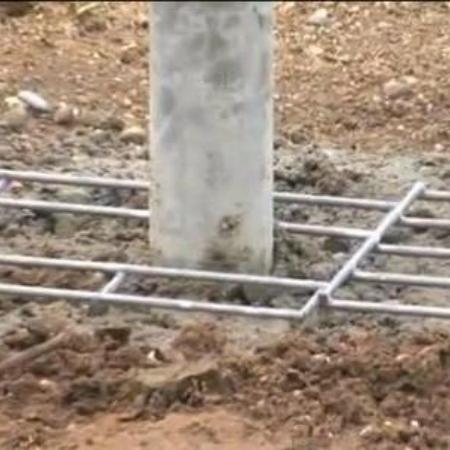

Capped Posts
Hollow steel posts need to be capped to prevent water entry
Design Guidelines
An engineer’s design will take precedence, over these guidelines.

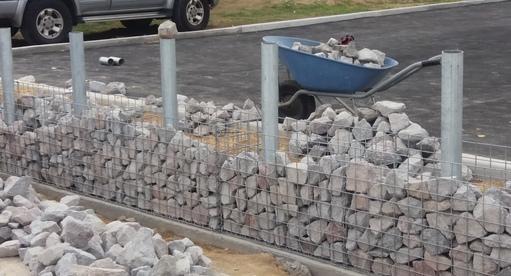

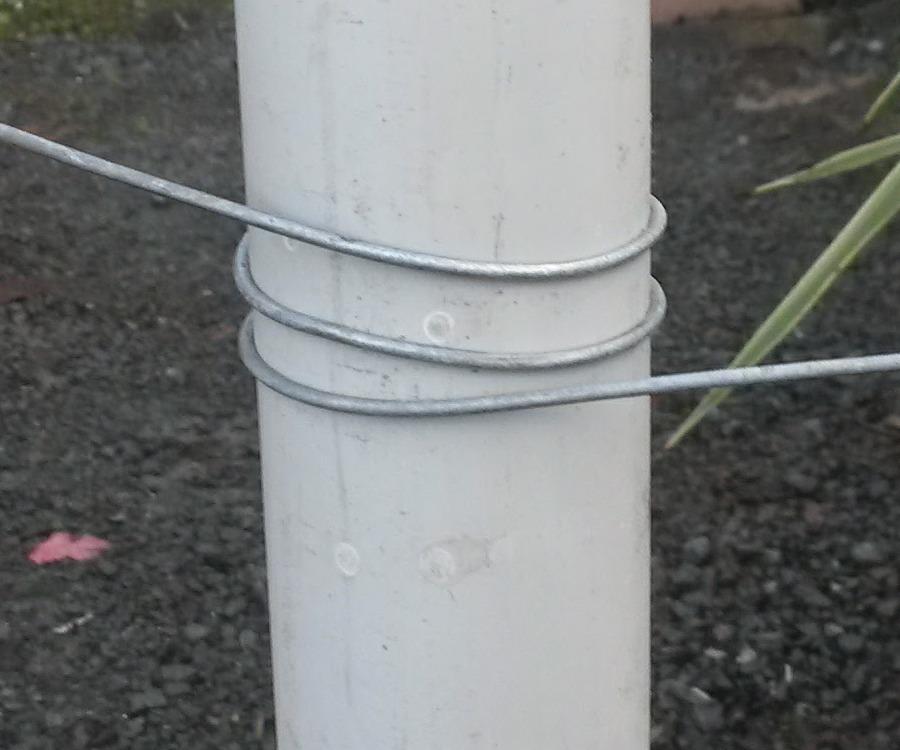

Bracewire Example
Bracewire used around support post, view example for clarity.

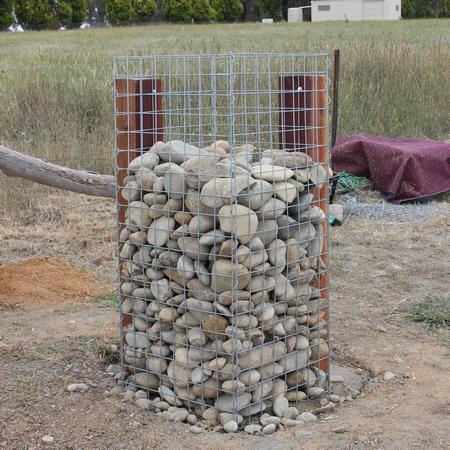

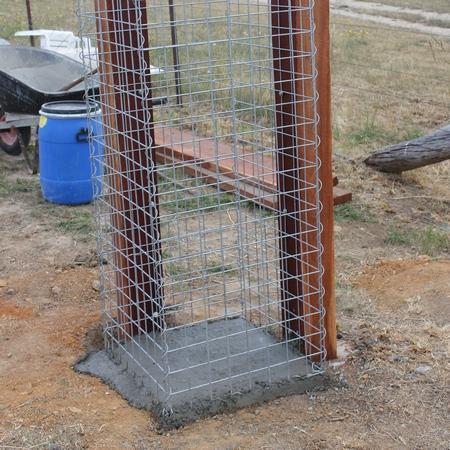

Support Post Example
Post example in a non-retaining wall, see if this is for you.
Engineer Design
For retaining walls, posts need engineer approval & design.
