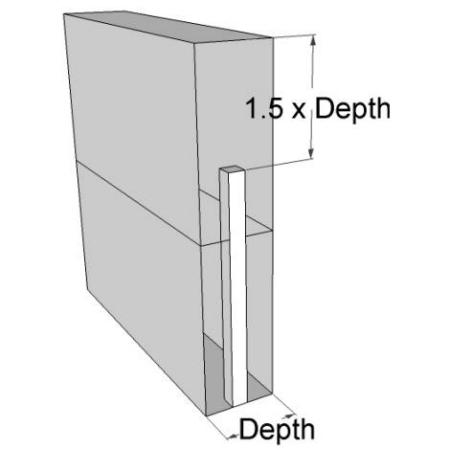

Gabion Supports
Gabion support posts must extend to at least 1.5 x Depth from the top of the gabion basket

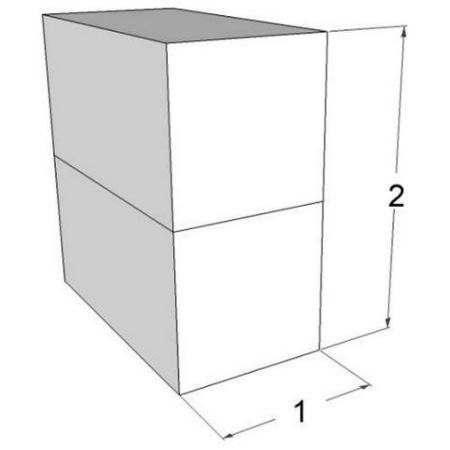

Wall Ratio
Gabion retaining walls with flat ground behind or slopes of less than 5deg. should not exceed the 2:1 ratio
More Information
Retaining walls with additional loads on top of them, e.g. driveways, banks, buildings, will require extra thickness, and possibly an engineer’s design.
click here for profile info
Post Spacing
Gabion support posts spacing should be no greater than 1.0m apart.
Steel Post Caps
Hollow steel posts need to be capped to prevent water entry
Design Precedence
An engineer’s design will take precedence, over these guidelines.

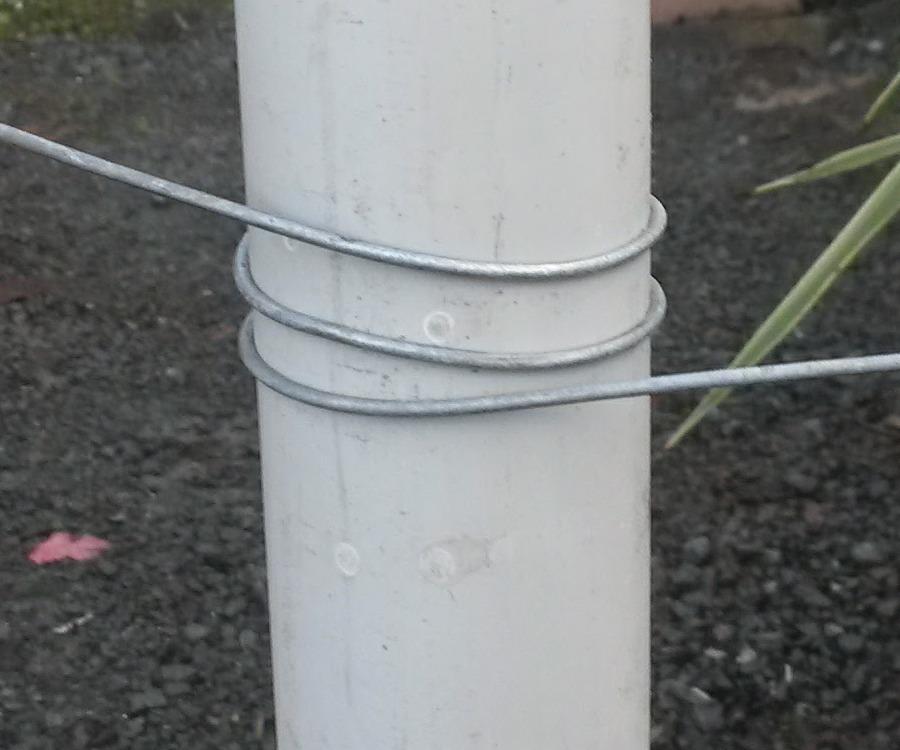

Bracewire example
Bracewire around a support post for gabion walling.

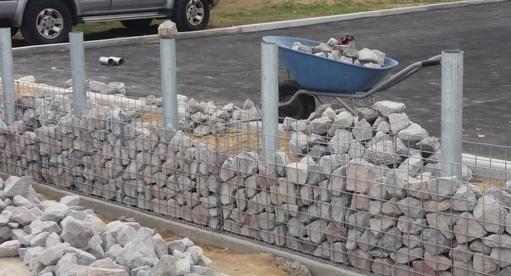

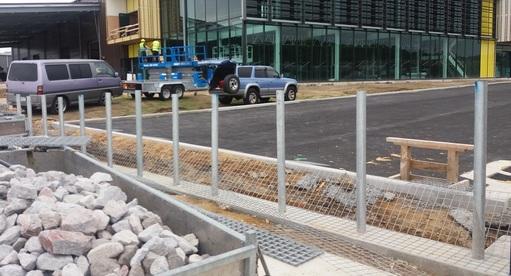

Posts Example
Support post example in a non-retaining structure.
Important note
Posts are not recommended unless engineer designed.
