Which mesh to use for gabion steps

Angular rock is the best gabion fill as it provides a good interlock and therefore less deformation of the face occurs. When using rounded river rock as gabion fill, it is recommended that you use the heavier 4.5mm gabion baskets, which are less likely to deform under load.

5.2mm wire (which is 44% stronger than 4.5mm) is the preferred choice where an uniform architectural look is required, the gabions are likely to be sat or walked on, and when building steps

For more info on mesh size, deflection information and my youtube video on mesh rigidity, check out https://gabion1.com.au/index.php/gabion-wire-mesh-size/

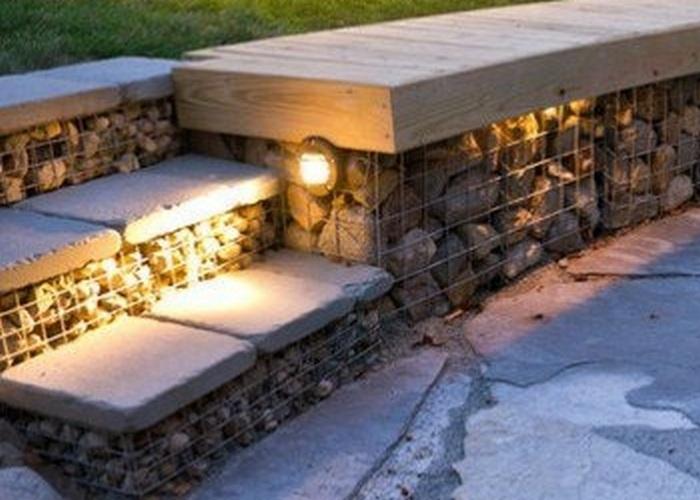

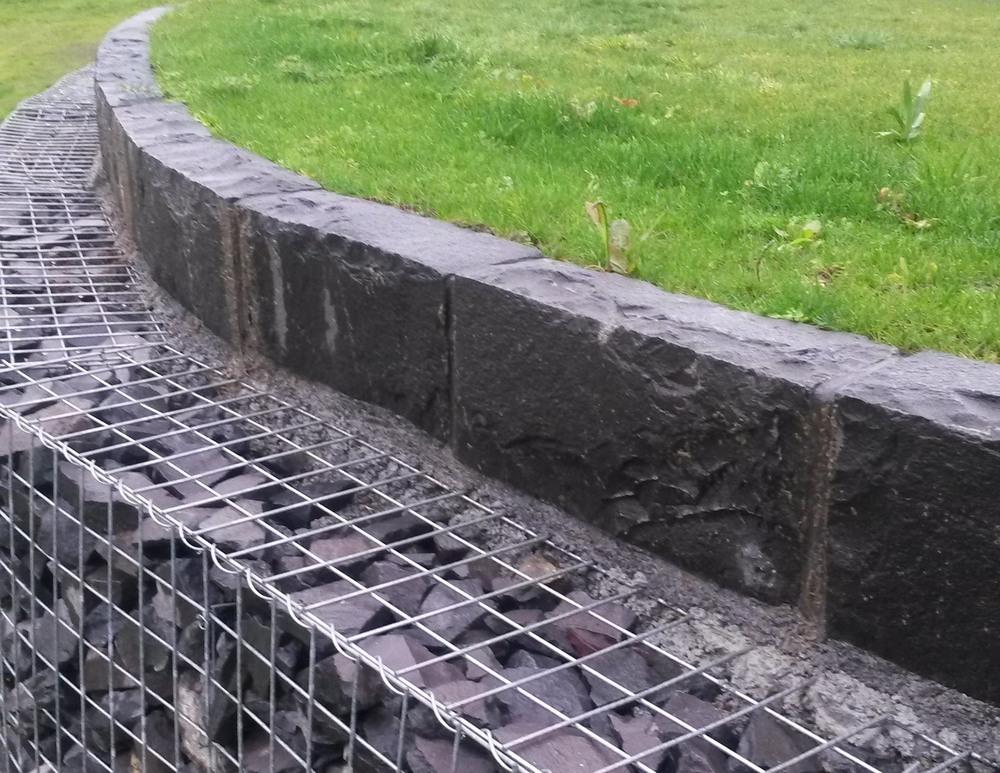

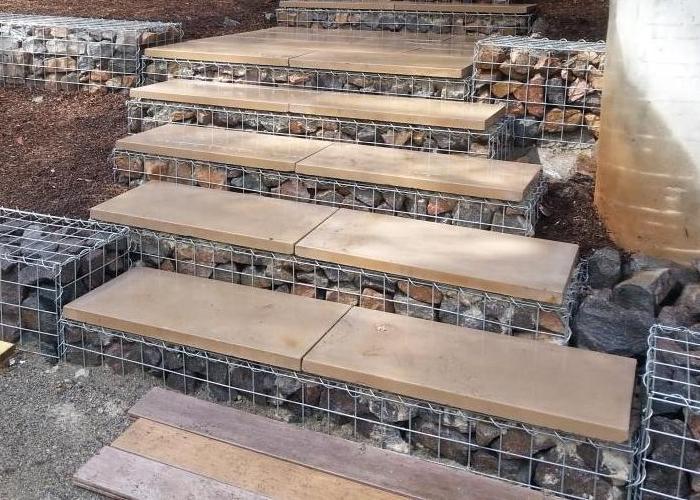

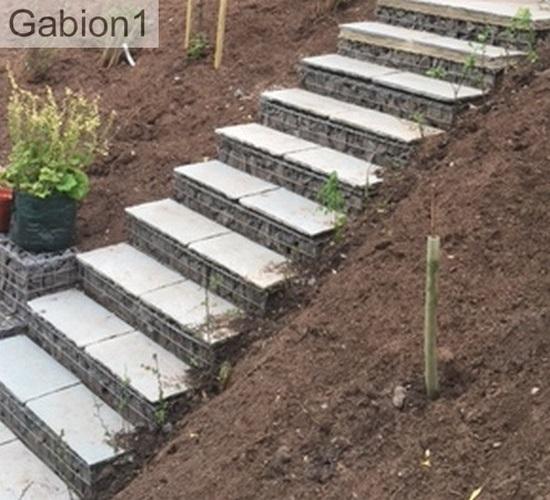

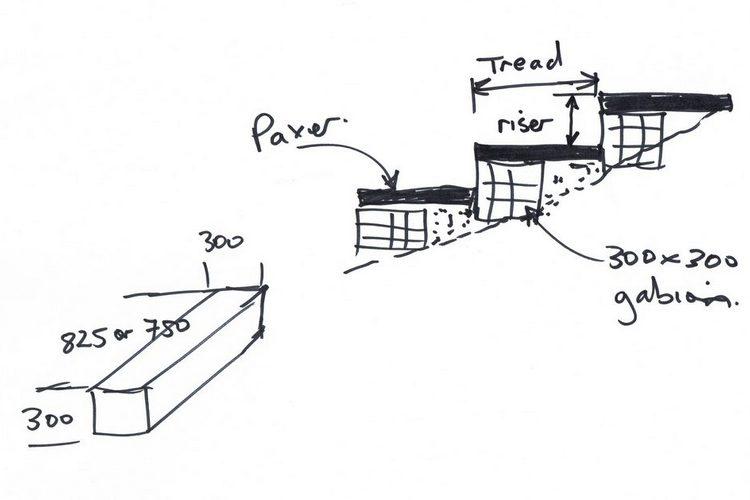

Often the treads are covered with a paving stone

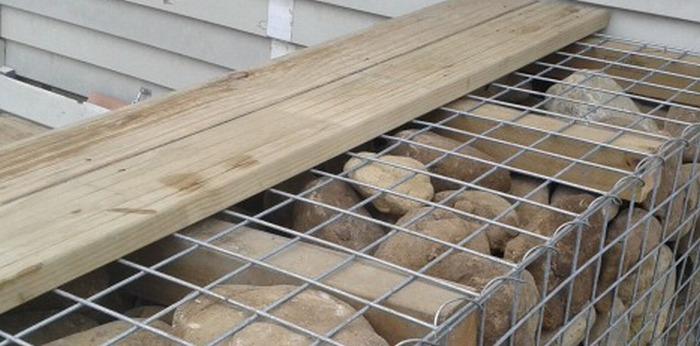

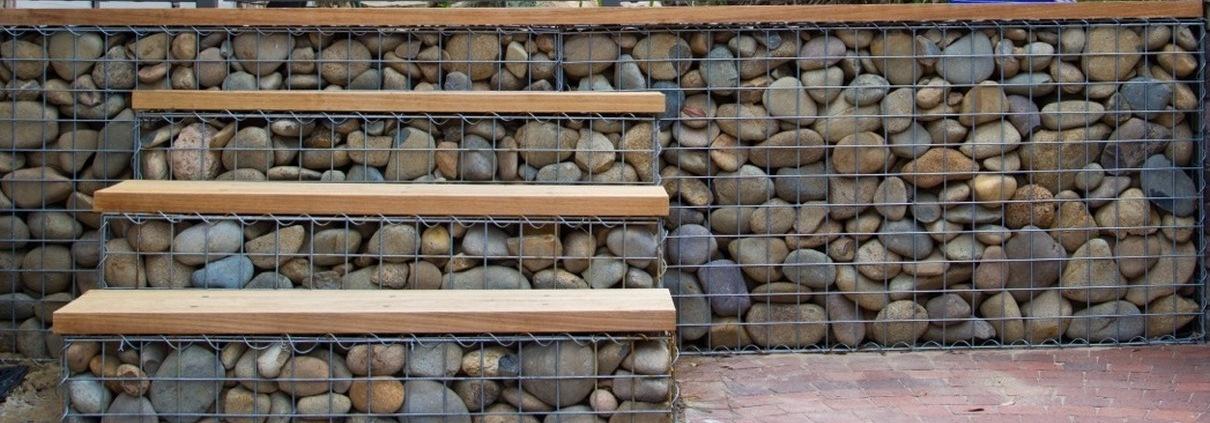

Or timber capping

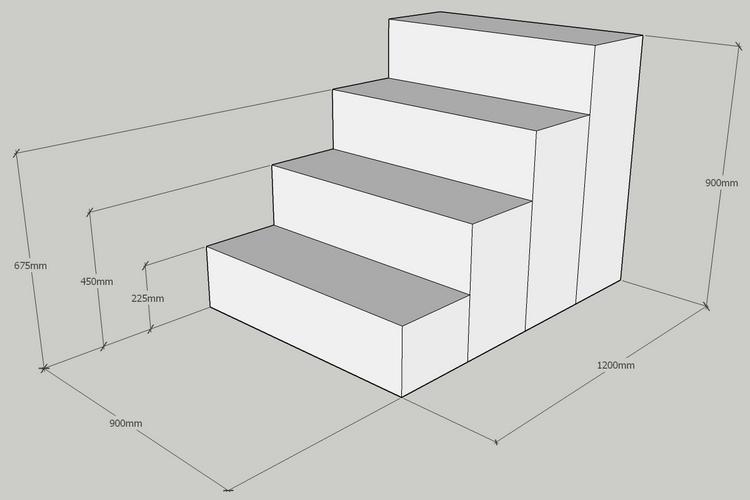

Hundreds of different sized gabions for steps

Our gabion sizes are in 75mm increments, ( the mesh size)

heights and thickness’s are available in

225, 300, 375, 450, 525, 600mm,……. up to 1500mm tall or thick

We can make a gabion for almost any sized step, check out our price and size information

Or email us with your required sizes and quantities, and we will get back to with costings

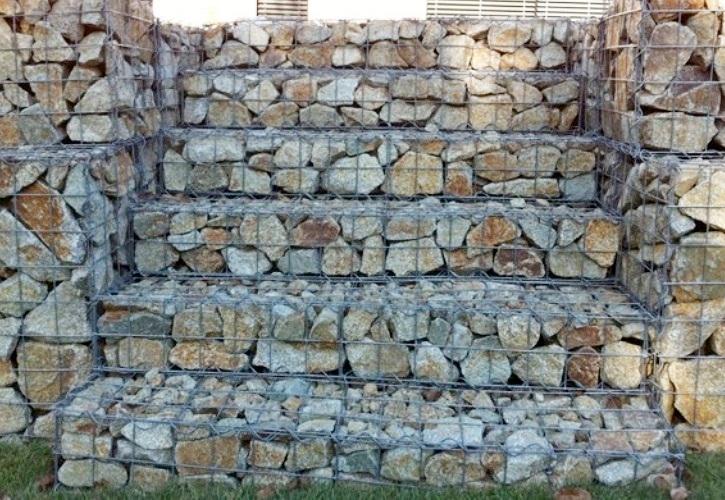

Gabion stairs with no capping

This gives a more rustic finish to your project.

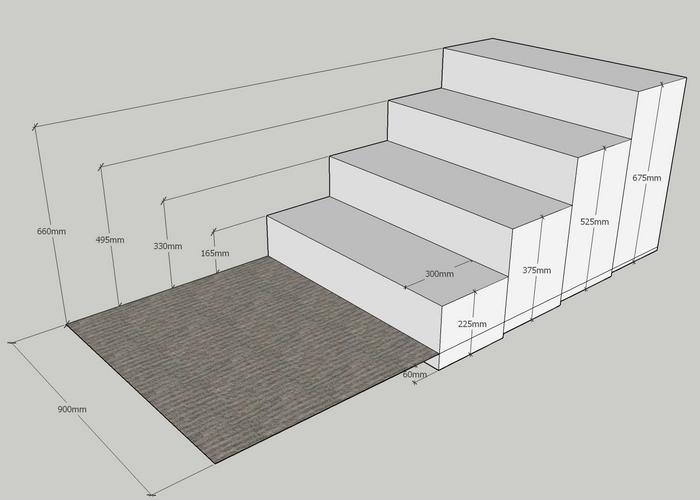

Different height foundations

By slightly burying the gabion, the tread height can be optimised.

Making the steps easier to walk up.
