Gabion Baskets for Retaining Walls Toe and Footing Design Guidelines
Typical Gabion Retaining Wall Sections

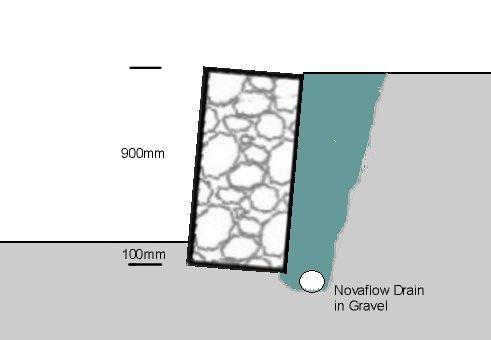

900mm High Gabion Retaining Wall

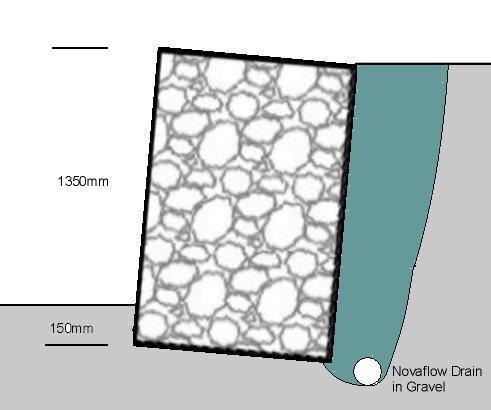

1.35m High Gabion Retaining Wall

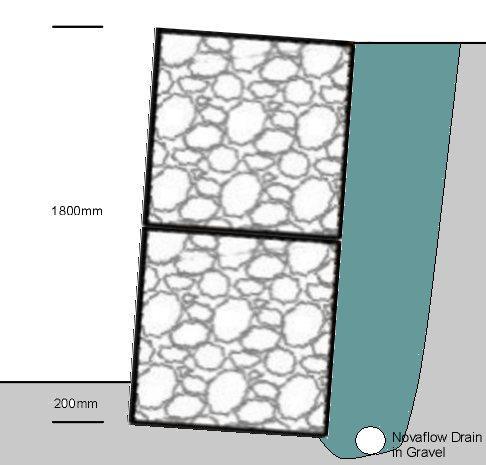

1.8m High Gabion Retaining Wall

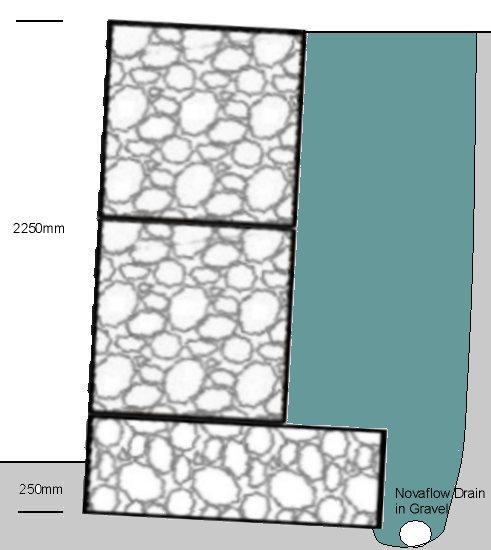

2.25m High Gabion Retaining Wall

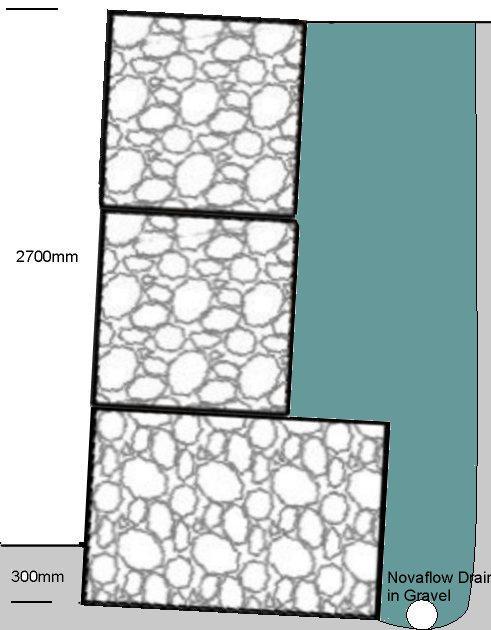

2.7m High Gabion Retaining Wall
NOTES:
Details provided are guidelines only.
Soil Investigation:
Wall designed by engineer.
Backfilling:
Slope of 5-10 degrees.
Retaining Wall Toe:
Prevents the gabion wall sliding.
Additional Surcharges:
Take the higher expected loads.
Gabions Filled:
Provide appearance of dry stone wall.
Advice or assistance:
[email protected]
