Gabion Stone Walls
Discover our gabion walls and other designs. We have a wide selection.
Step 1 - Remove topsoil and subsoil to required depth

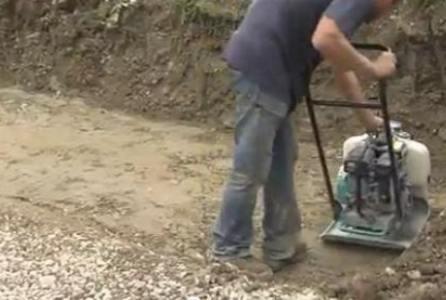

Step 2 - Compact sub base if required
Step 3 - Add base coarse and compact to final foundation level

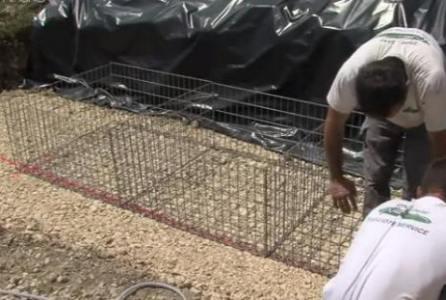

Step 4 - Assemble baskets
Questions and Answers
Gabion baskets for retaining walls come in a variety of sizes
Do I need all this heavy equipment for a 600mm tall wall?
Generally for walls under 1.0m tall on firm ground; all you need to do is remove the first 100mm of topsoil and replace with gravel.
How much base coarse do I need?
Large walls on a soft sub base may need 300mm or more, while a small wall on a firm sub base may only need 25mm .
Do I need a concrete foundation?
Most gabion walls can be built without a concrete foundation, however some supported walls and special engineer designed walls may require a concrete foundation.
How test if my sub base is strong enough?
Engineers use a scala penetrometer to do foundation testing. A simple soil stenght test is to hammer a 12mm steel rod 500mm into the sub base, if you can do this easily your base needs to be replaced with base coarse.
