Find here information about gabion foundations
Gabion walls require lateral support posts
Wall size, soil strength and wind loads determine the depth of foundation and the size and spacing of posts.

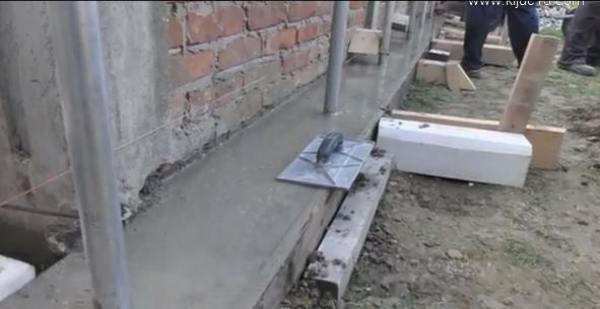

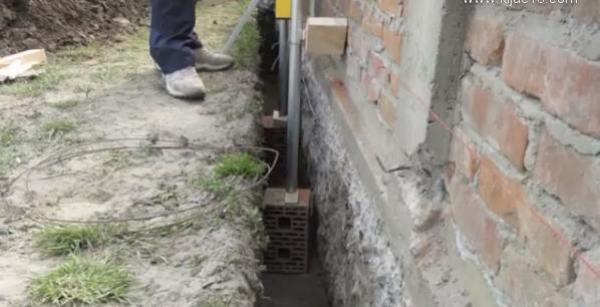

Step 2 - Concrete in posts, a base nib wall as shown, may be required.

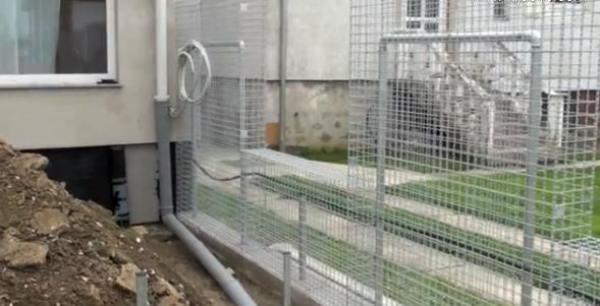

Step 3 - Fit gabion baskets around support posts

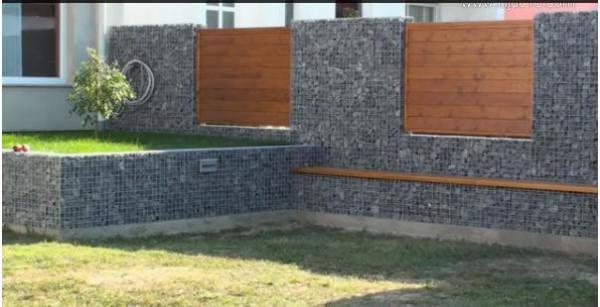

Step 4 - Fill Gabion baskets
Questions and Answers
In this section, find the answers to common questions.
What spacings should the posts be?
Generally posts are spaced at around 1.0m apart.
Can I use timber support posts?
Yes, but there is less room inside the gabion cage.
Do I need the concrete nib wall?
Not always, some supported walls only need the posts.
