Erosion Control
Simple, Low Cost Solutions for your specific needs.

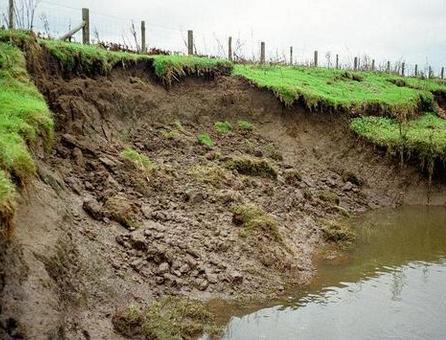

How to Control River Erosion
Gabion River and Stream Erosion benefits are: Rapid Construction; Disipate Flowing Water; Semiflexible blocks; Irregular surface to reduce river bank scouring; Cheaper than concrete; Free draining.
How Gabion Erosion cages work.

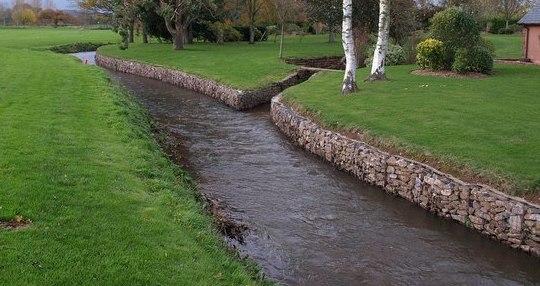

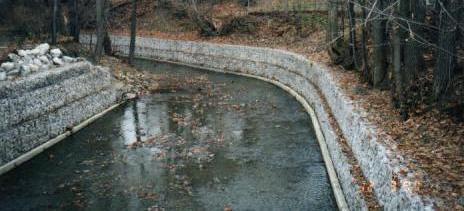

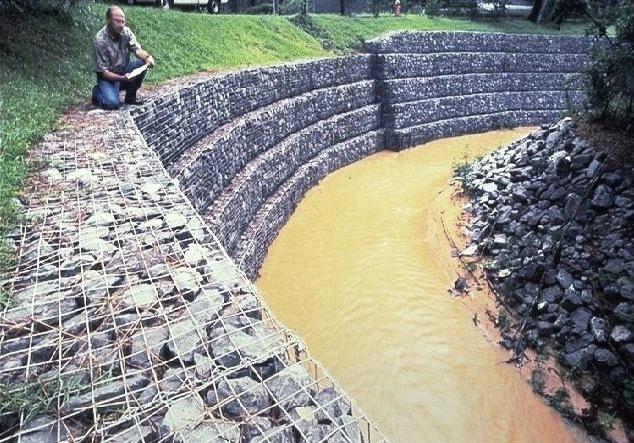

Gabion baskets placed on the outside of the river bend to prevent river bank erosion during floods. Geotech filter fabric is placed behind and underneath the gabion baskets to prevent the movement of soil material through the gabions.

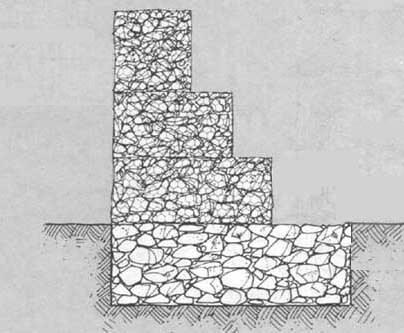

The base layer of gabions should be placed below the expected maximum scour depth, or the toe can be protected with gabion mattresses.

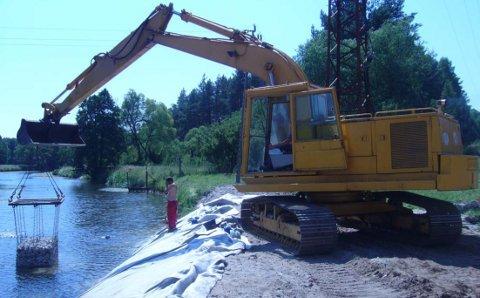

Gabions can be pre filled and lowered into place, for immediate protection.
