Gabion Erosion Control
Simple Low Cost Erosion Control
How to Control River Erosion
Gabion River and Stream Erosion benefits are: 1/ Rapid Construction. 2/ Disipate flowing water energy. 3/ Blocks for channel stabilisation. 4/ Have an irregular surface. 5/ Use of smaller rock for protection. 6/ Cheaper, flexible and greener. 7/ Can be installed in dry or wet conditions. 8/ Free draining.
How Gabion Erosion cages work.

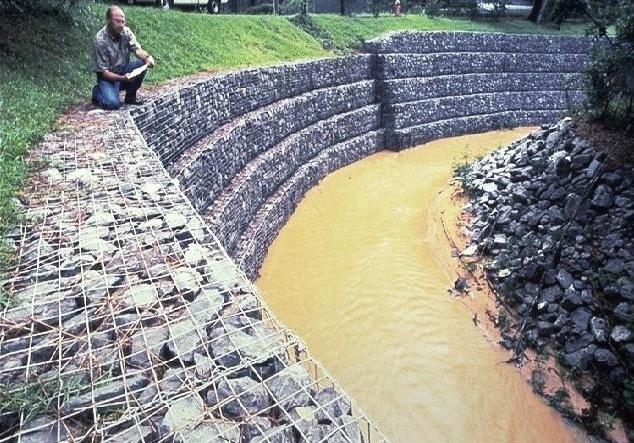

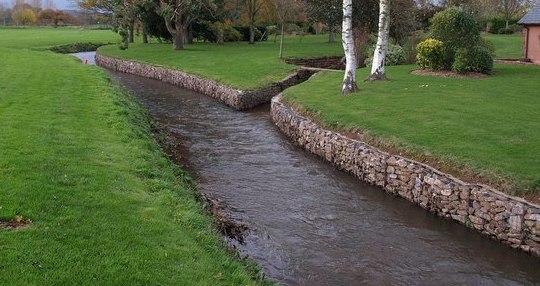

Gabion baskets placed on the outside of the river bend to prevent river bank erosion during floods. Geotech filter fabric is placed behind and underneath the gabion baskets to prevent the movement of soil material through the gabions.

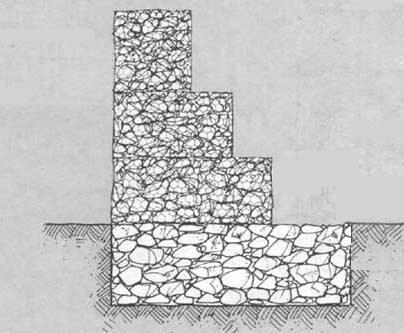

The base layer of gabions should be placed below the expected maximum scour depth, or the toe can be protected with gabion mattresses.

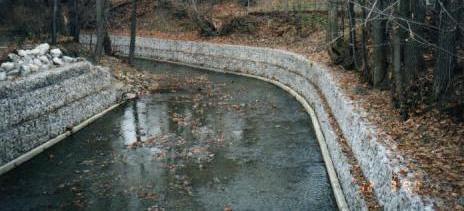

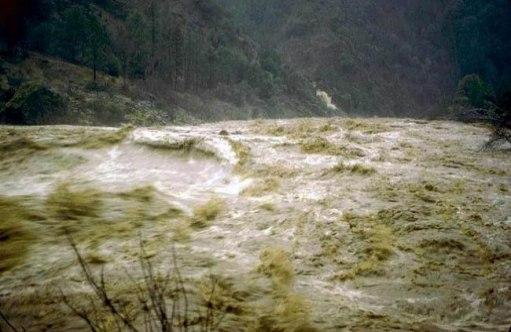

Gabion flood projection must be designed to cope with peak river flows often referred to to as 1 in 50yr floods.

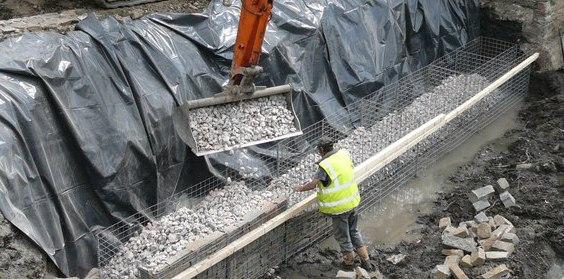

Gabions can be built in all weathers, the contractor has placed timber formwork to hold the gabions straight during machine filling. This wall also has a decorative stone on the face.

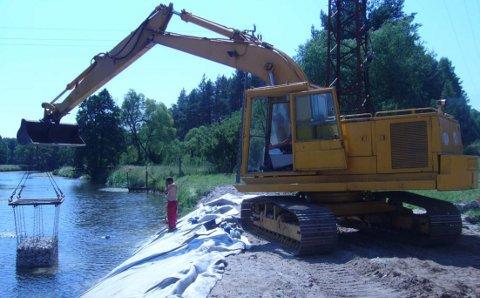

Gabions can be pre filled and lowered into place, for immediate protection.
Gabions can flex to ground movement, dissipate energy from flowing water, and drain freely. Their strength and effectiveness may increase with time, as silt and vegetaion fill the voids, and reinforce the structure.
In locations where high flood water velocities are expected, carrying woody debris and gravels in suspension, the stronger 4.5mm welded gabions are the preferred choice, to resist damage to the gabion structures during floods.
