Gabion Assembly Instructions
Low Cost Stone walls Search
Cheap easy to build gabion rock walls, shipped New Zealand wide in kit set

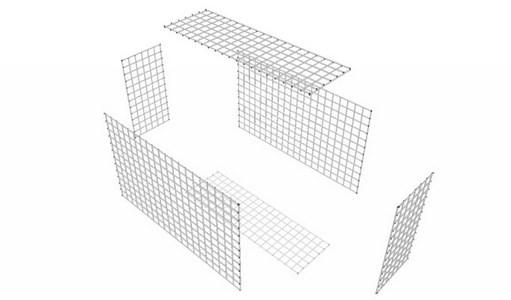

Six gabion panels form the first gabion; for assembly instructions, please watch the video.

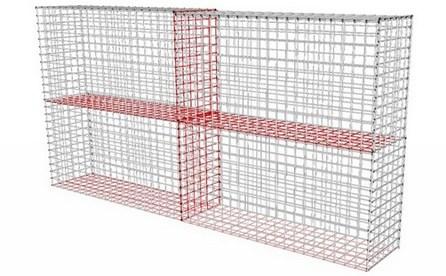

Shared end panels may not be needed
Unseen internal panels can be 3mm wire mesh
Check out the info on foundations

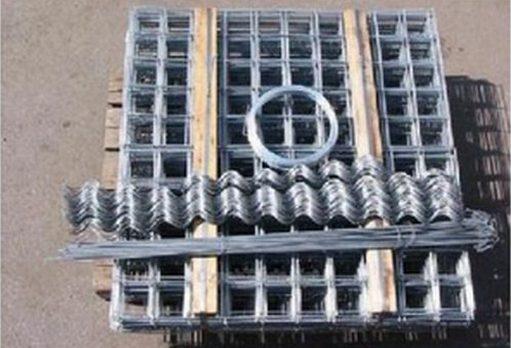

Gabion kitset ready for dispatch
Watch our youtube video on Helical connectors
Watch our youtube video on brace wire installation
Gabions ready for rock, long gabions come with diaphragms
Max spacing of bracewires 350mm in both directions
Temporary wires at the top of the gabion, will make it easier to install the lid
Optional temporary supports added before filing gabions

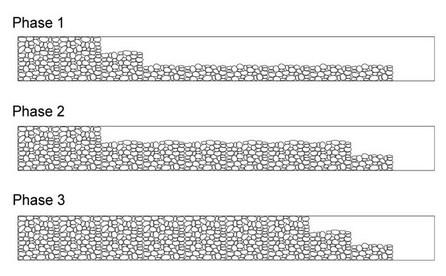

How to fill the gabions
The "best rocks" are hand placed on the face of the gabion
Under or over sized rocks placed in the middle of the wall

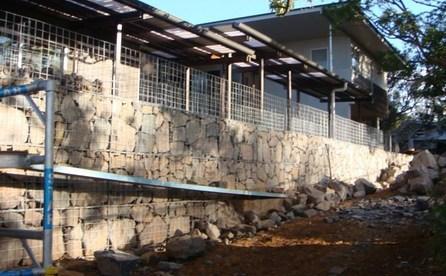

Additional rows of gabion baskets added to wall

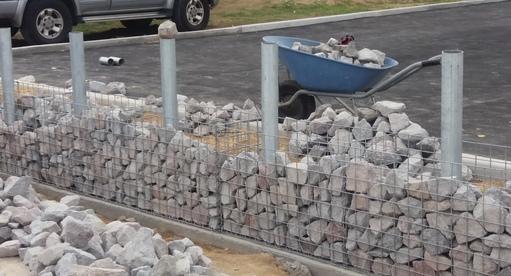

Gabion walls over 2:1 stability ratio will require support posts
Check out the info on wall stability. Support posts are not recommended for retaining walls, unless engineer designed
