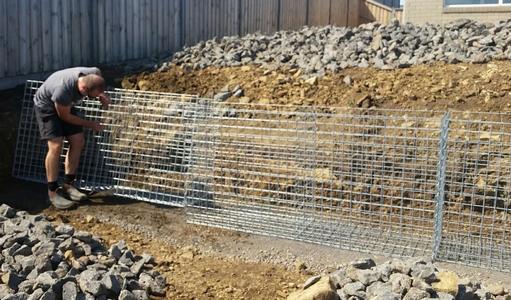

First gabion construction

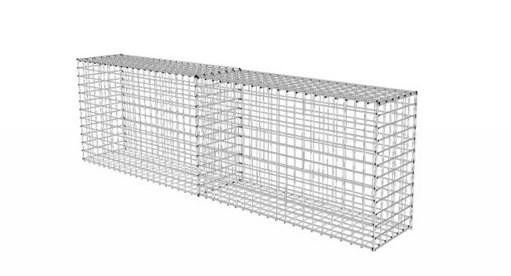

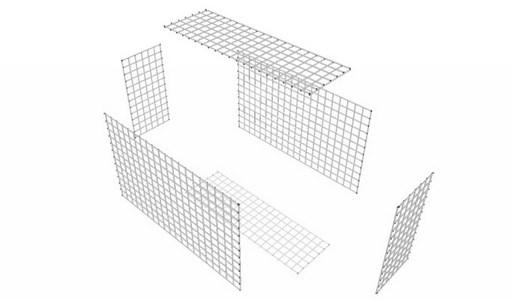

6 gabion panels are used to construct the first gabion

End panels are usually sold separately. Check if the panels you are buying share panels, or if you need dedicated end panels.

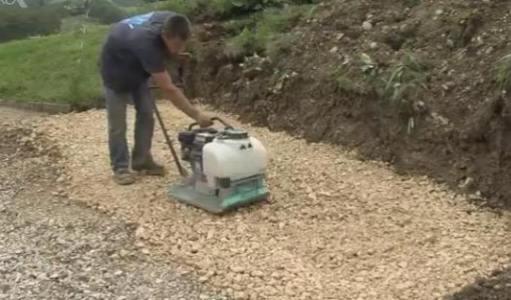

Make sure to check all the details you need for your foundation, and ensure you get the calculations done by a certified professional.

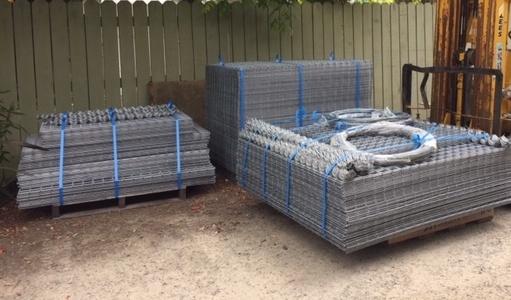

Small orders sent by courier; all orders are flat packed for your convenience.

No structural gabion walls needed, use lower grade rock as infill material.

Watch our YouTube video on bracewire, with max spacing 350mm to help you with your projects.

More info on deflection

Bracewires included here

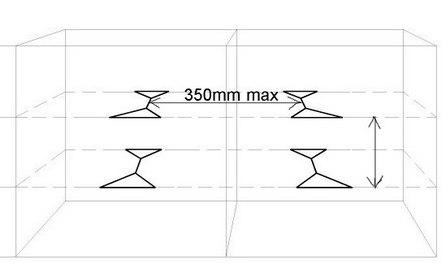

Max spacing of bracewires is 350mm in both directions

Temporary wires at the top of the gabion will make fitting the lid easier

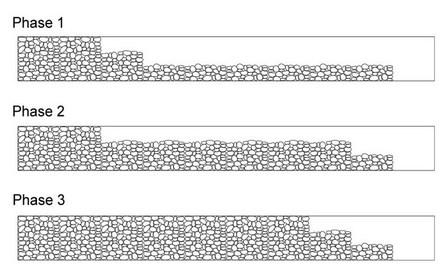

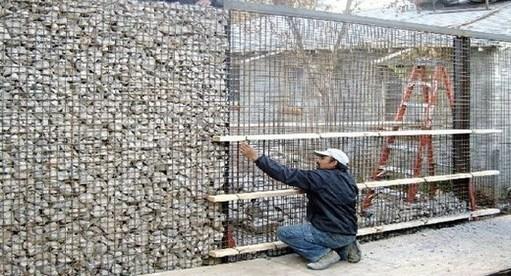

Using temporary bracing during rock installation

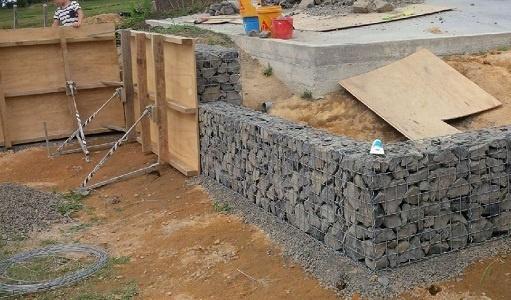

Plywood formwork can be used to get straight walls

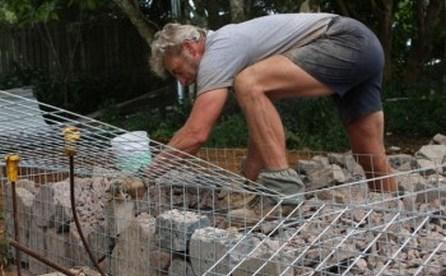

Hand placing the “best rocks” to get the required look

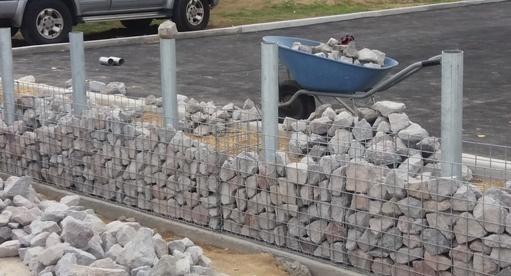

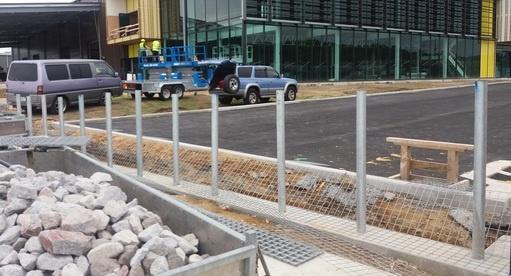

Support posts are required for tall thin walls

The strength of gabions depends on the fill used, ensuring resistance to applied loads.
